Burndy KA6U Mechanical Cable Lug
Regular price
$1.17
Couldn't load pickup availability
These Dual-Rated One-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; RoHS Compliant
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 1
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 6 AWG Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 1

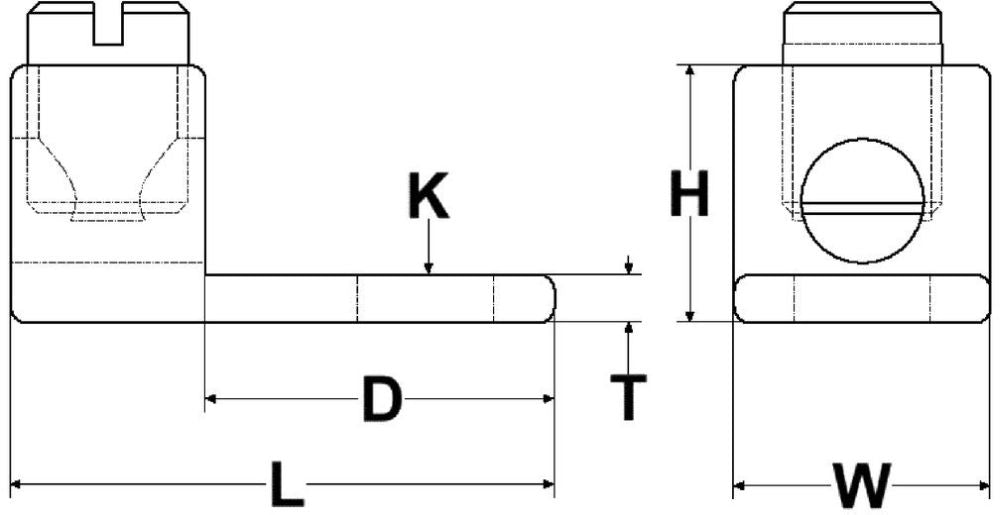

Pad Size: 0.63 Inch Length x 0.5 Inch Width x 0.09 Inch Thickness
Stud Size: 1/4 Inch
Overall Length: 1.06 Inch
Approval: UL 468A/B, CSA
