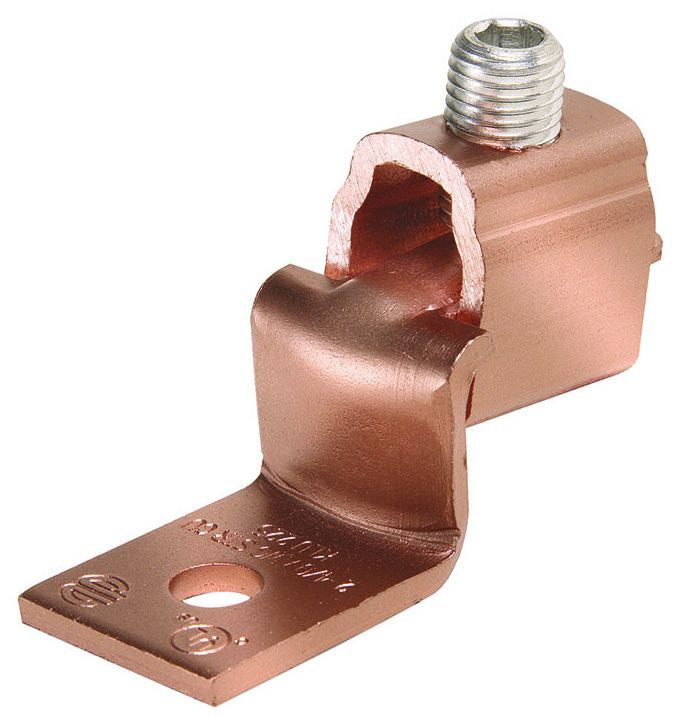

Burndy KLU35 Mechanical Cable Terminal Lug

High Copper Alloy Terminal with Offset Tongue for Joining a Wide Range of Cable to Equipment Pads or Bar; Easy to Install with Screwdriver or Wrench; Connector is Reusable; Plain Copper Finish; Convenient Range-Taking Design; One Conductor Accommodates Several Conductor Sizes; High Conductivity Copper Alloy; Long Lasting Reliable Contact; Compact Design; Easy to Use; Reduces Labor Time; Slot Robertson Screw, Hex Head/Hex Socket Bolt; No Special Installation Tools Required; Eliminates Over-Torquing/Potential Conductor Damage

Specifications:

Type: Set Screw
Number of Conductors: 1
Minimum Conductor Size: 14 AWG Solid/Stranded
Maximum Conductor Size: 6 AWG Solid/Stranded
Conductor Material: Copper
Pad Type: Offset
Screw Type: 1/4 Inch UNF Slot
Material: Copper Alloy
Number of Pad Holes: 1
Pad Size: 0.39 Inch W x 0.07 Inch Thk
Stud Size: #10
Overall Length: 1.24 Inch
Approval: UL 467, UL (Canada and US)
