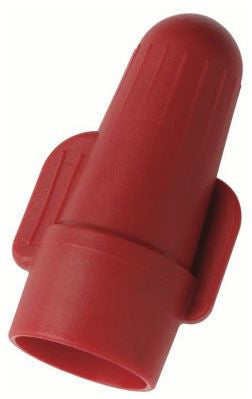

The B-TWIST Wire Connector combines all of the features of red and yellow wing-style wire connectors in one unique design. The rounded dial-top with vertical grooves provides fast, fingertip starts and its low-profile design fits easily into electrical boxes. The long, swept wings offer high torque and improve comfort while the wide, expanding spring makes for easy starts on even the largest combinations.The tough, flame-retardant shell withstands environmental extremes with a long, deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.Featuring a wide wire range from 2 #18 up to 2 #8, the B-TWIST provides top performance and speed in a compact connector.

Specifications:

Type: Swept Wing
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 18 to 8 AWG
Minimum Wire Combination Size: (2) #18
Maximum Wire Combination Size: (2) #8
Spring Type: Square Wire
Color: Red
Temperature Rating: 105 Deg C
Standard Package: 500 per Jar
Approval: UL, CSA
