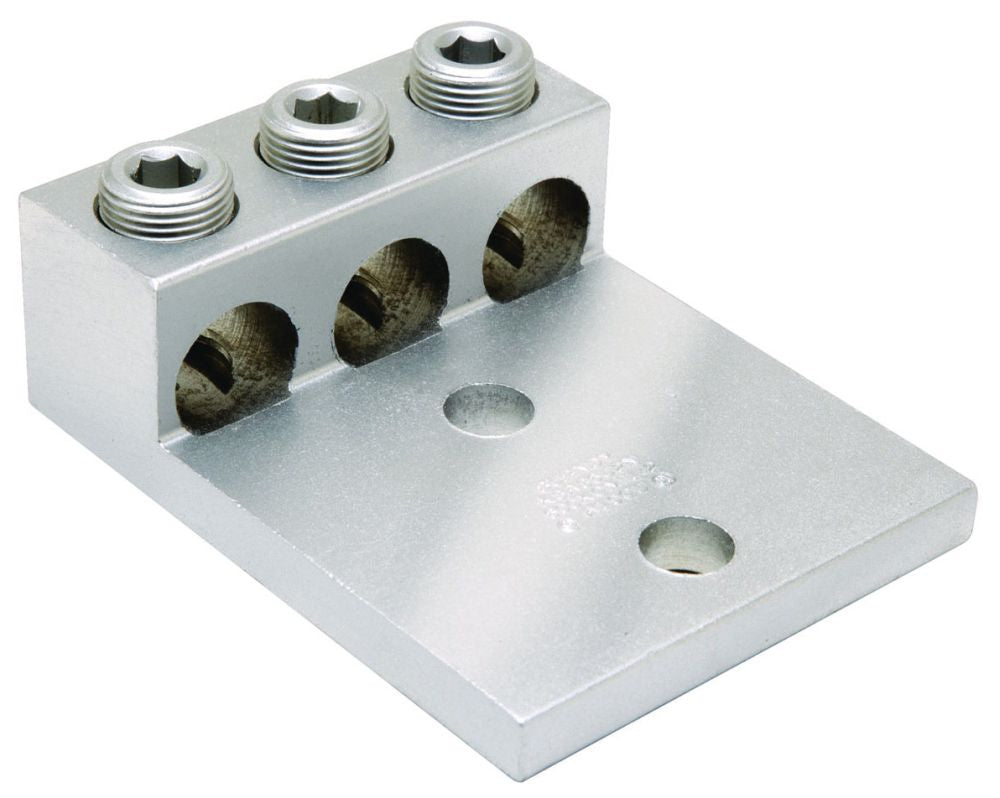

Burndy K3A26U2N Mechanical Cable Terminal Lug
Regular price
$50.58
Couldn't load pickup availability
Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 3
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 2/0 AWG Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 2 NEMA

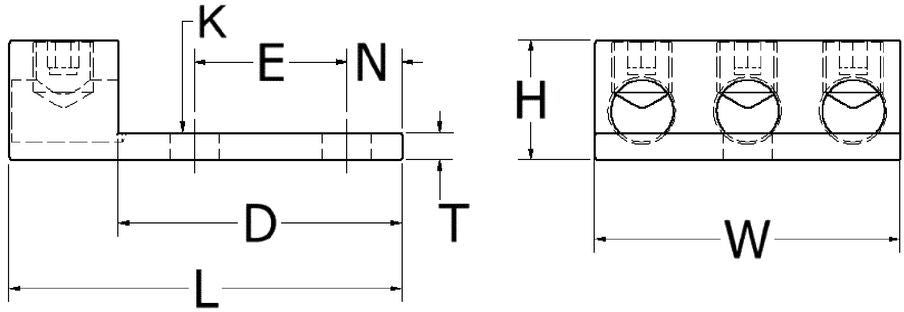

Pad Size: 3.06 Inch Length x 1.95 Inch Width x 0.19 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 3.75 Inch
Approval: UL 468A/B, CSA
