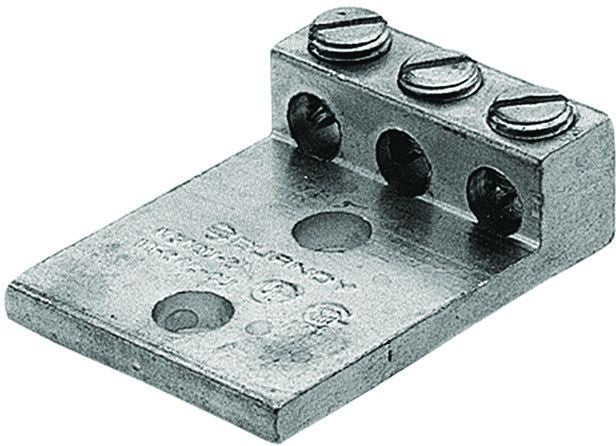

Burndy K3A25U2 Mechanical Cable Terminal Lug
Regular price
$18.96
Couldn't load pickup availability
Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors; RoHS Compliant
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 3
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 1/0 AWG Stranded
Conductor Material: Copper/Aluminum
Screw Type: Slotted Head
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 2

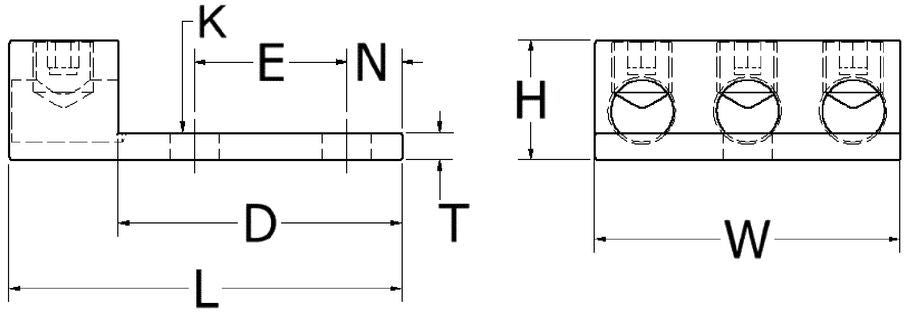

Pad Size: 2.09 Inch Length x 1.94 Inch Width x 0.25 Inch Thickness
Stud Size: 3/8 Inch
Overall Length: 2.91 Inch
Approval: UL 468A/B, CSA
