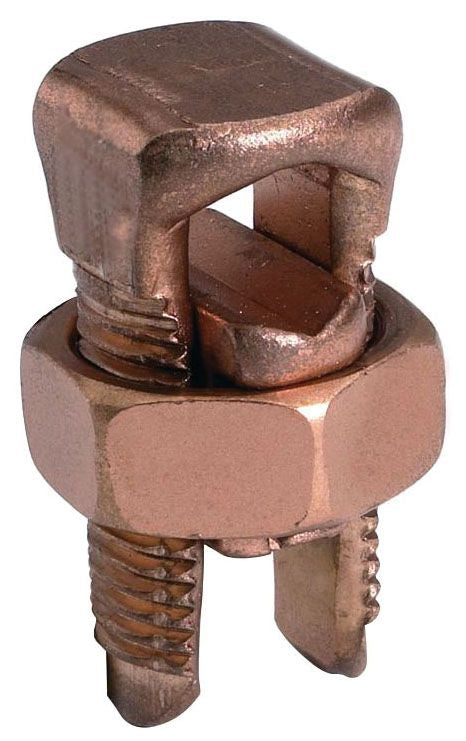

Burndy KS22 Mechanical Split Bolt Connector

Compact, High Strength, High Copper Alloy Servit Split-Bolt has Free-Running Threads and Easy to Grip Wrench Flats; Highly Resistant to Season Cracking and Corrosion, the Servit Connectors Provide Maximum Pressure and Assure a Secure Connection on All Combinations of Run and Tap Conductors

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 6 AWG Stranded (Copper)
Maximum Run Conductor Size: 2 AWG Solid, (3) 8 AWG Stranded, 4 AWG Type A, 6 AWG Type D (Copperweld)
Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
Maximum Tap Conductor Size: 2 AWG Solid (Copper), 2 AWG Solid, (3) 8 AWG Stranded, 4 AWG Type A, 6 AWG Type D (Copperweld)
Material: High Copper Alloy
Approval: UL, CSA
