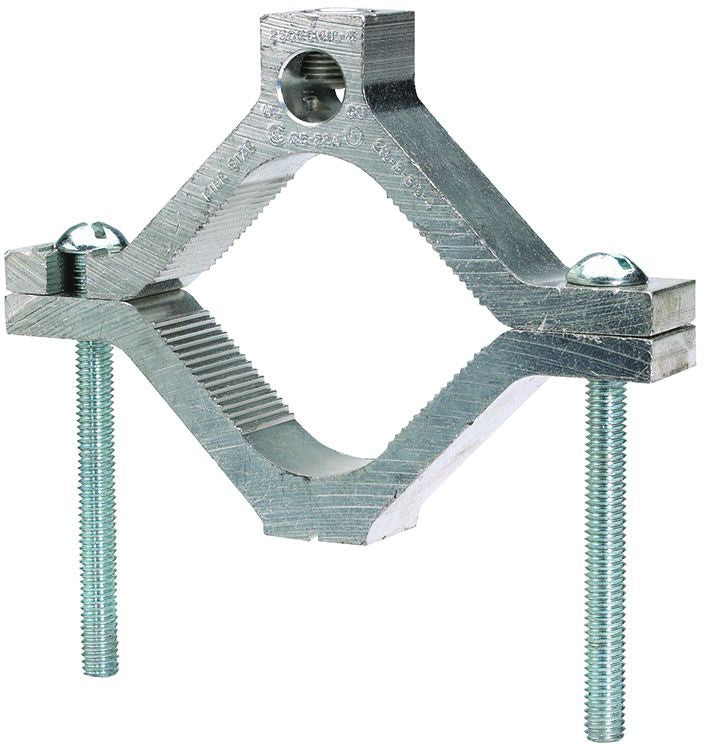

Burndy GC15A Mechanical Grounding Clamp Connector

GC-A Ground Clamps are UL Listed for Use with Either Copper or Aluminum Conductors to Copper Water Pipe, Galvanized Pipe or Steel Conduit; All Clamps are Constructed from Tin Plated High-Strength Extruded Aluminum Alloy for Maximum Flexibility of Application; Penetrox Oxide Inhibiting Joint Compounds are Recommended for All Aluminum Applications; All Connectors are Tin Plated Provide Low Contact Resistance and Prevents Galvanic Corrosion; RoHS Compliant

Specifications:

Conductor Size: 8 to 4/0 AWG (Aluminum), 14 to 1/0 AWG Solid/Stranded (Copper)
IPS Size: 1/2 to 1 Inch

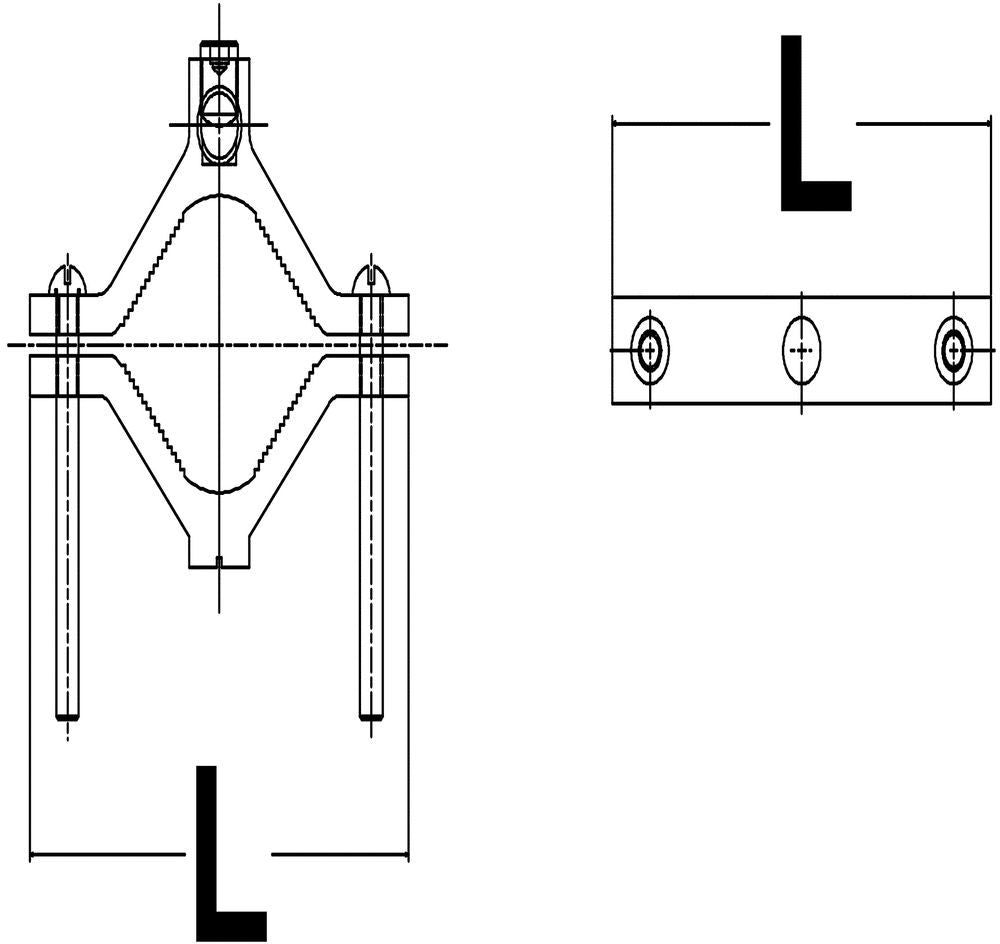

Size: 2-1/4 Inch Length x 11/16 Inch Width
Installation: (2) Slotted Screw Wire Connector to Pipe
Material: High-Strength Tin Plated Extruded Aluminum Alloy
Approval: UL 467
Used On: Copper/Aluminum Conductor to Copper Water Pipe/Conduit
