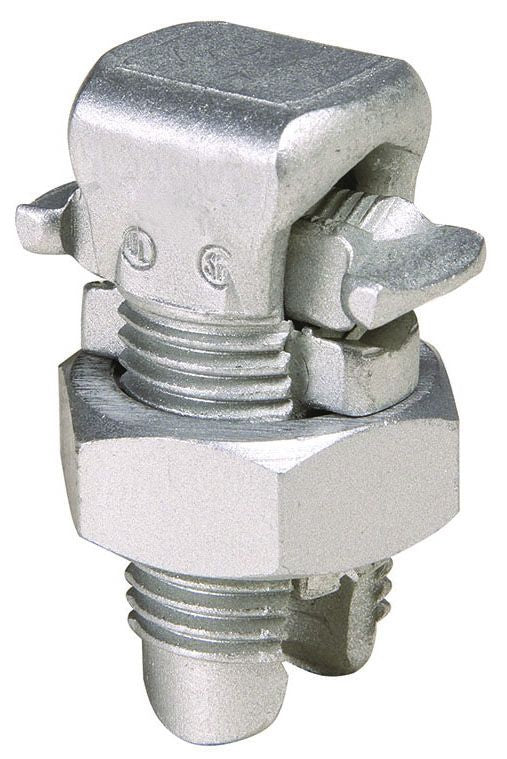

Burndy KSA2/0 Split Bolt Connector

No Scratch Brushing Required; No Oxide Inhibitor Required; Orients the Conductor; Provides Maximum Pressure and Assures a Secure Connection of Run and Tap Conductors; Facilitates Piercing the Aluminum Conductor Surface Oxides; Provides a Low Contact Resistance; Provides Equal Coefficient of Expansion; Inhibits the Reformation of Oxides by Producing a Gas-Tight Seal; Provides Improved Retention of Minimum to Maximum Conductor Combinations

Specifications:

Installation: Split Bolt
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Maximum Run Conductor Size: 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper)
Minimum Tap Conductor Size: 8 AWG (Aluminum/Copper/Solid)
Maximum Tap Conductor Size: 2/0 AWG (Aluminum/Copper/Solid)
Material: Tin Plated Aluminum Alloy
Approval: UL 486B, CSA
