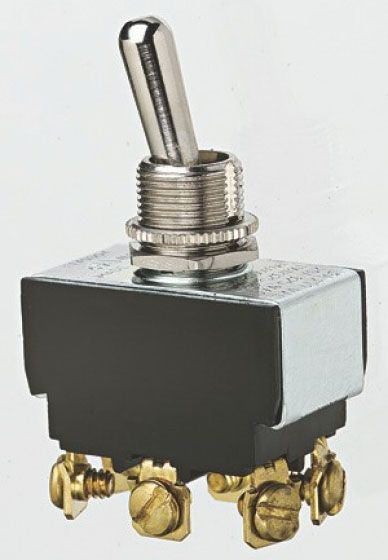

Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; Mechanical Life 100,000 Cycles

Specifications:

Type: Heavy Duty
Voltage Rating: 125/277 VAC
Current Rating: 20 Ampere at 125 VAC, 10 Ampere at 277 VAC
Operation Type: Maintained On/Maintained Off/Maintained On
Contact Configuration: DPDT
Toggle Material: Nickel Plated Brass
Mounting: Bushing
Terminal Type: Spade
Size: 1.3 Inch L x 0.76 Inch W x 0.8 Inch H
Application: Power Tool, Motor Control Switch Appliances
Approval: UL, CSA
