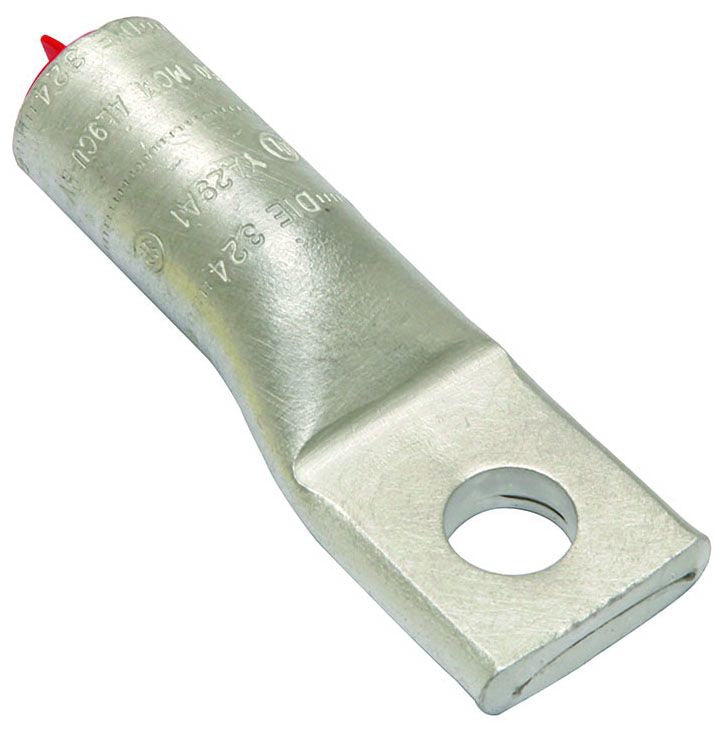

Burndy YA29A1 Compression Terminal
Regular price
$20.16
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
Barrel Type: Short, Standard, Straight
Barrel Length: 1.45 Inch
Pad Size: 1.26 Inch W x 0.33 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Red
Die Index: 324
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 3.53 Inch
Approval: UL 468A/468B, CSA
