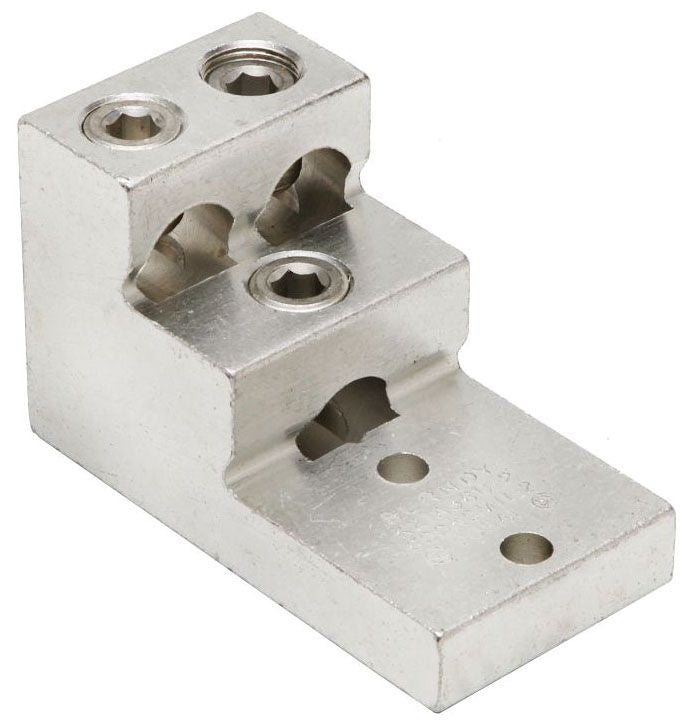

Burndy K21A36U2 Mechanical Terminal Lug
Regular price
$161.31
Couldn't load pickup availability
Dual-Rated Panelboard Lugs are Constructed from High Strength Extruded Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors
Specifications:
Number of Conductors: 3
Minimum Conductor Size: 2 AWG Aluminum, 2 AWG Stranded Copper
Maximum Conductor Size: 600 KCMIL Aluminum, 600 KCMIL Stranded Copper
Conductor Material: Aluminum/Copper
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 2

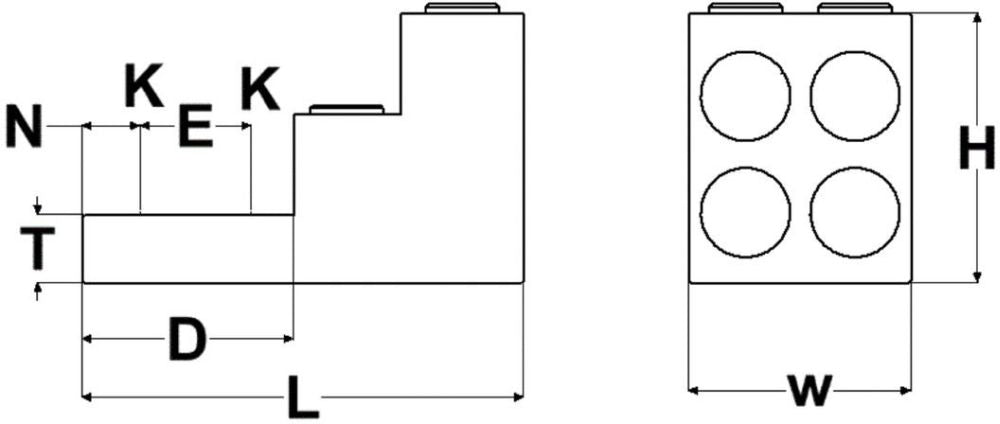

Pad Size: 2.31 Inch L x 2.5 Inch W x 0.75 Inch Thk
Stud Size: 3/8 Inch
Overall Length: 4.91 Inch
Approval: UL 468A/486B, CSA
