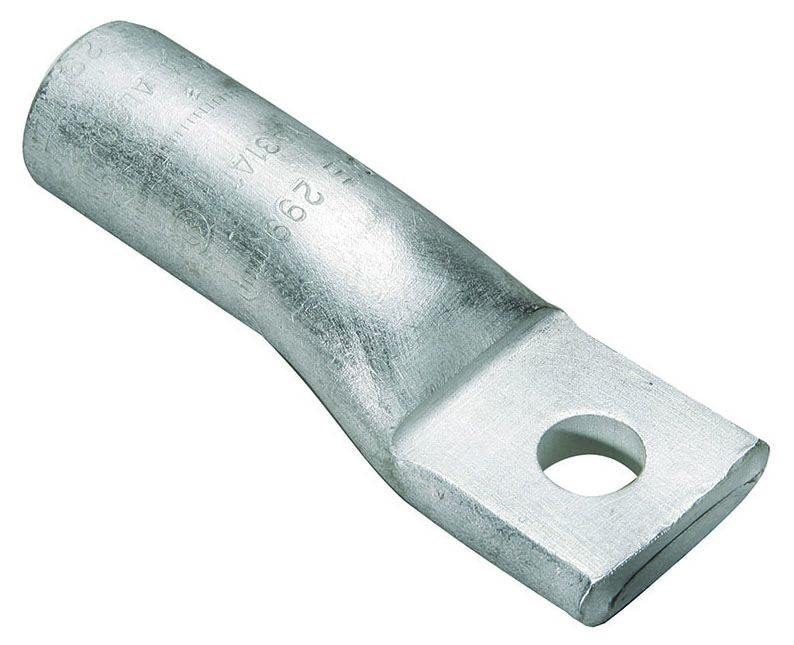

Burndy YA6CA1 Compression Terminal
Regular price
$6.78
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 6 AWG (Aluminum), 6 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 0.75 Inch
Pad Size: 0.47 Inch W x 0.14 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Gray
Die Index: 346
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 1.84 Inch
Approval: UL 468A/468B, CSA
