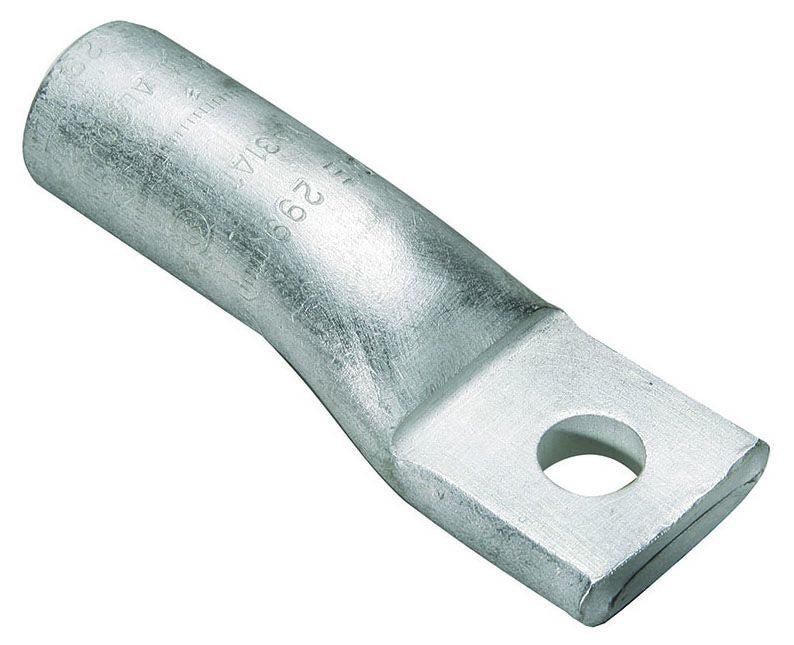

Burndy YA27A1 Compression Cable Lug
Regular price
$15.98
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 3/0 AWG (Aluminum), 3/0 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1.11 Inch
Pad Size: 0.73 Inch W x 0.26 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Ruby
Die Index: 467
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 2.88 Inch
Approval: UL 468A/468B, CSA
