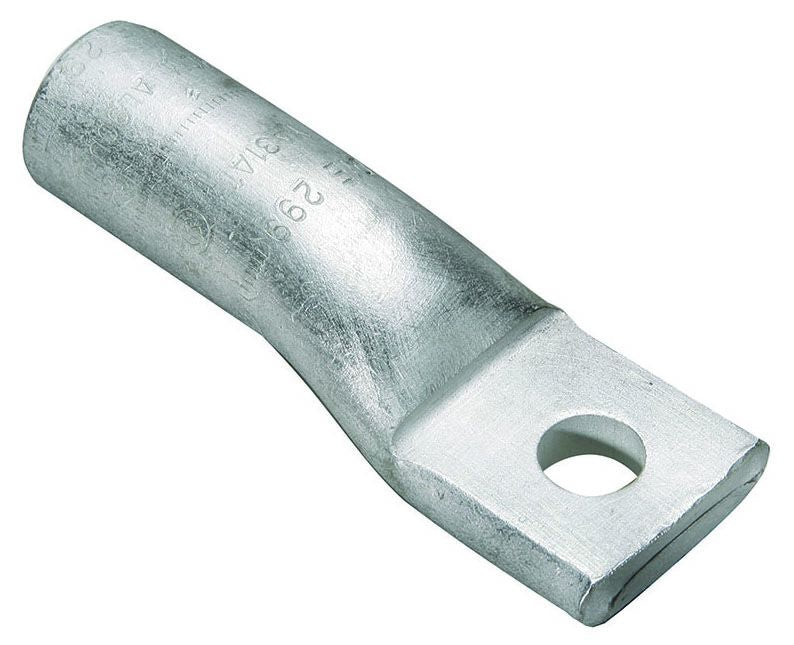

Burndy YA28A3 Compression Cable Lug
Regular price
$13.54
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 4/0 AWG Stranded (Code)
Barrel Type: Standard, Straight
Barrel Length: 1.39 Inch
Pad Size: 1.17 Inch Width x 0.3 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: White
Die Index: 298
Material: Electro Tin Plated Wrought Aluminum
Overall Length: 3.44 Inch
Approval: UL 468A/468B, CSA
