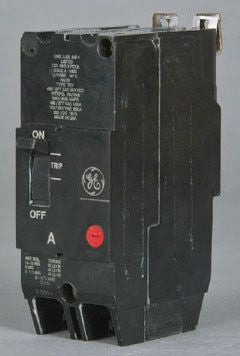

The TEY is a 1-Inch Wide per Pole, Compact, "Bolt-On" Circuit Breaker for Use on Grounded 480Y/277 VAC Systems; The Bolt-On Mounting Base Accessory Makes the TEY Suitable for Varied Applications as a Lug-Lug Breaker; All TEY Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TEY
Voltage Rating: 480 Star/277 VAC
Maximum AC Voltage Rating: 480 Star/277 V
Maximum DC Voltage Rating: 250 V
Current Rating: 80 Ampere
Number of Poles: 2
Interrupting Rating: 65 Kiloampere at 240 VAC, 14 Kiloampere at 277 VAC, 14 Kiloampere at 480 Star/277 VAC, 10 Kiloampere at 250 VDC
Terminal Type: Copper/Aluminum Load Lug
Size: 2 Inch W x 3-1/16 Inch D x 5-1/4 Inch H
Approval: UL, CUL
