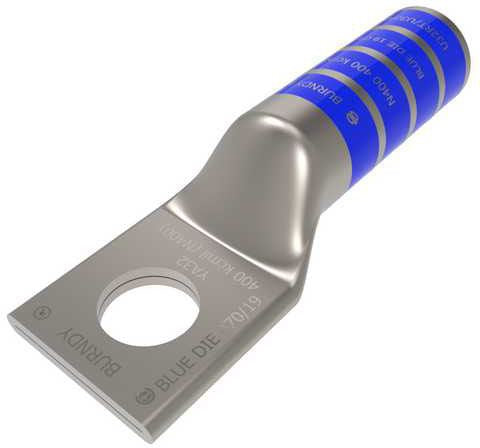

Burndy YA32 Compression Cable Lug

Out of stock
SKU: 99666
Regular price $31.94

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant


Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 400 KCMIL Stranded, 400 Navy
Barrel Type: Long, Straight
Barrel Length: 2.12 Inch
Pad Size: 1.4 Inch Width x 0.19 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/8 Inch
Color: Blue
Die Index: 19/470
Material: Electro-Tin Plated Copper
Overall Length: 4.15 Inch
Approval: UL 468A/B, CSA
