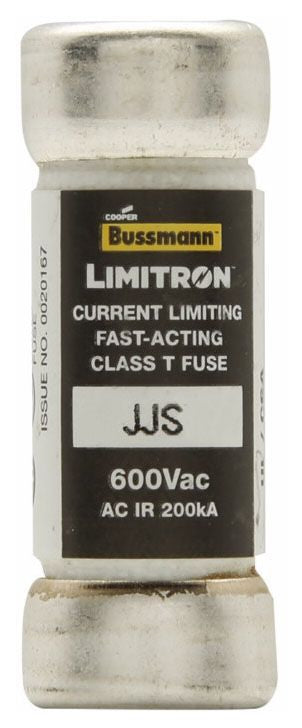

Bussmann JJS-10 Fast Acting Fuse

Out of stock
SKU: 99699
Regular price $17.80

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today’s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.


Type: Class T
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC
Current Rating: 10 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 1.5 Inch
Approval: UL, CSA C22.2, CE
