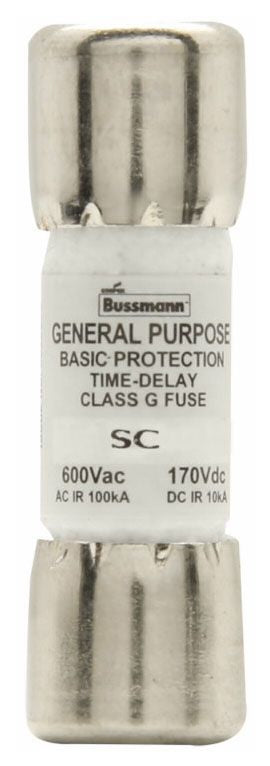

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing.

Specifications:

Type: Class G
Characteristics: Time Delay
Voltage Rating: 480 Volt AC, 300 Volt DC
Current Rating: 50 Amp
Interrupting Rating: 100 Kiloamp (Symmetrical), 10 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 2.25 Inch
Approval: UL 248-5, CSA C22.2, CE
