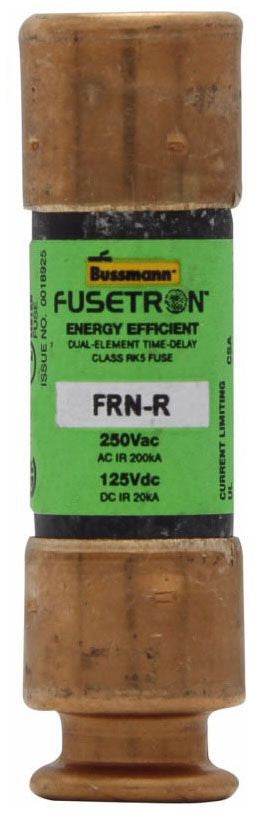

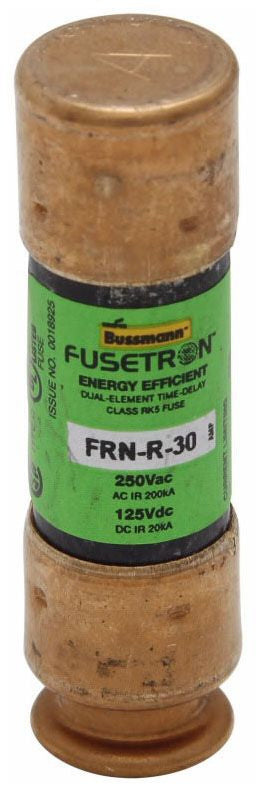

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current.

Specifications:

Type: Class RK5
Characteristics: Time Delay, Dual Element
Voltage Rating: 250 Volt AC
Current Rating: 25 Amp
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL 248-12, CSA C22.2
