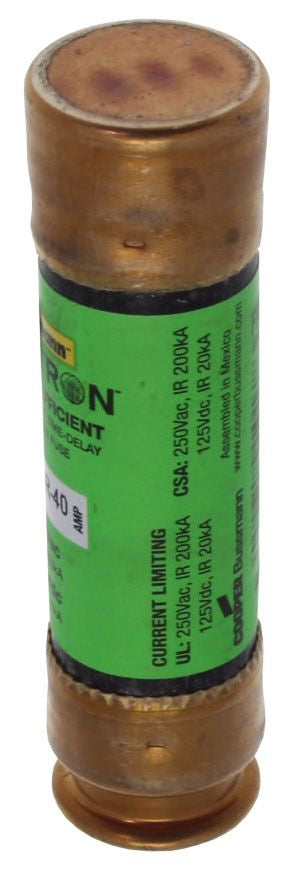

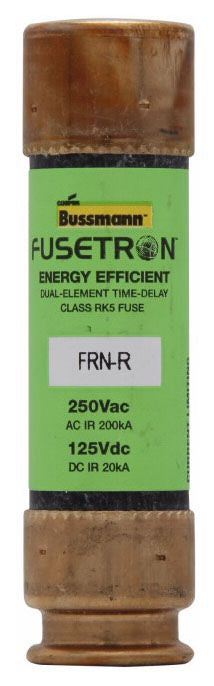

Bussmann FRN-R-40 Time Delay Fuse

In stock - 31 items available
SKU: 99737
Regular price $10.60
OR

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current.

Specifications:

Type: Class RK5
Characteristics: 10 Second Time Delay, Dual Element, Non-Indicating
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 40 Amp
Interrupting Rating: 200 Kiloamp Symmetrical (AC), 200 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.81 Inch
Length: 3 Inch
Approval: UL 248-12, CSA C22.2, CE
