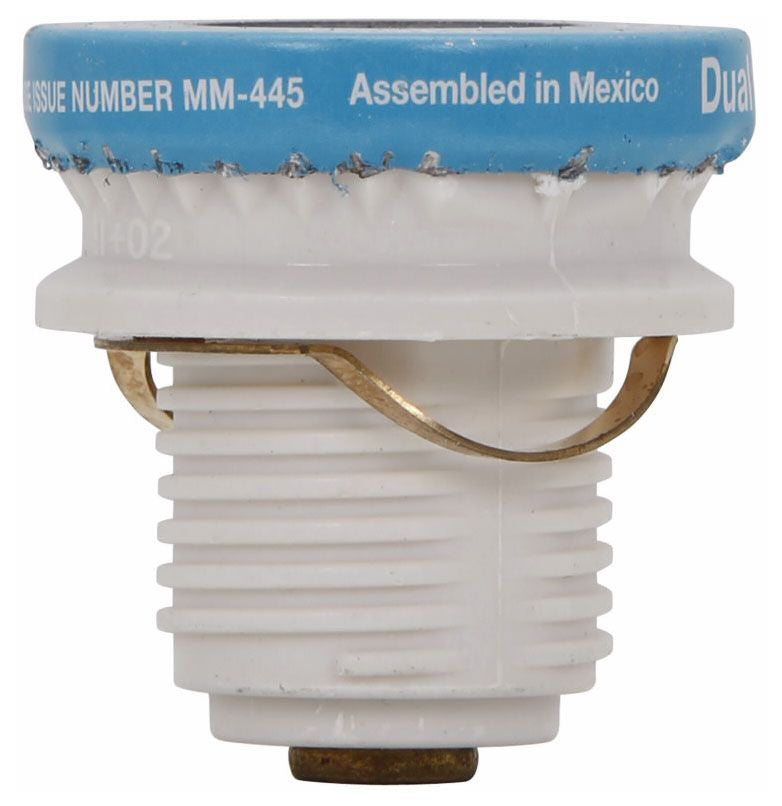

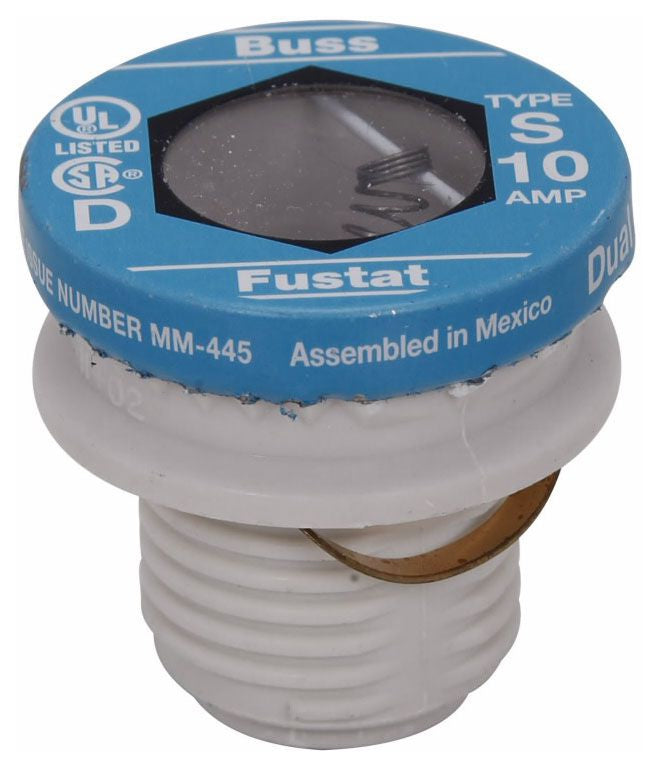

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

Type: Type S
Characteristics: Dual Element Time Delay
Voltage Rating: 125 Volt AC
Current Rating: 6-1/4 Amp
Interrupting Rating: 10 Kiloamp (Symmetrical)
Base Type: Rejection
Approval: UL 248-11, CSA 1423-01, CE
