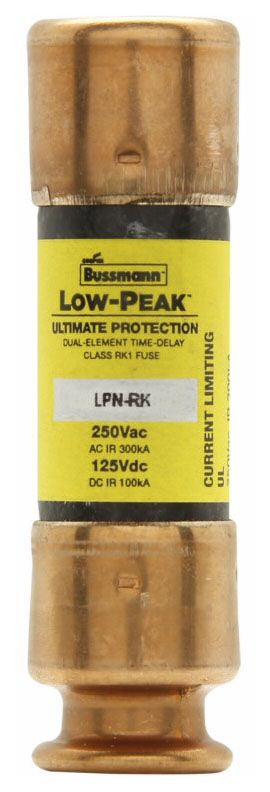

Bussmann LPN-RK-40SP Time Delay Fuse

Out of stock
SKU: 99781
Regular price $25.52

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.


Type: Class RK1
Characteristics: 10 Second Time Delay (at 500 Percent Rated Current), Dual Element, Non-Indicating, Current Limiting
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 40 Amp
Interrupting Rating: 300 Kiloamp (Symmetrical), 100 Kiloamp DC
Terminal Type: Ferrule with Grooved Ring
Diameter: 0.81 Inch
Length: 3 Inch
Approval: UL, CSA C22.2, CE
