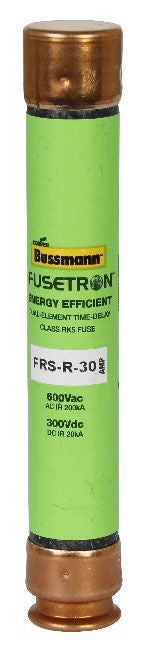

Bussmann FRS-R-30 Time Delay Fuse

Only 1 left
SKU: 99802
Regular price $18.96

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current.


Type: Class RK5
Characteristics: 10 Second Time Delay (500 Percent Rated Load), Dual Element
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 30 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical AC), 20 Kiloamp (DC)
Diameter: 0.81 Inch
Length: 5 Inch
Approval: UL 248-12, CSA C22.2, CE
