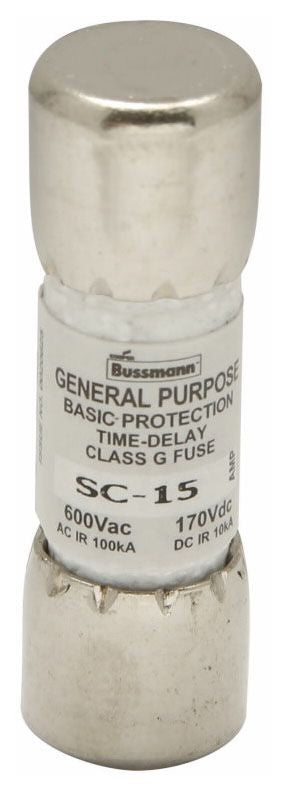

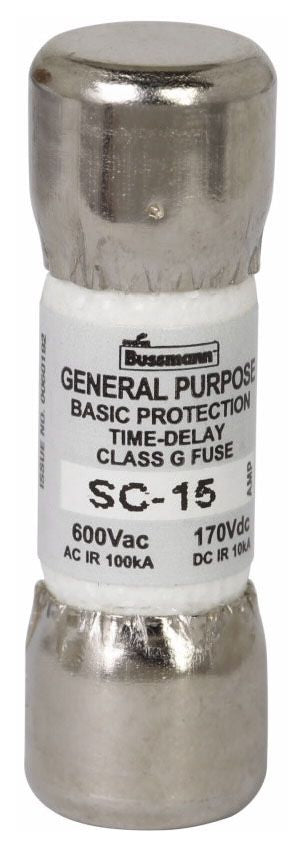

Class G Current Limiting for Component and Branch Circuit Protection; 100 Kiloamp Interrupting Rating Provides Cost-Effective Branch Circuit Fusing for Systems with High Short-Circuit Current Level; Rejection Feature with Variations in Length Helps Prevent Over-Fusing; For Use in Various Non-Demanding, General Purpose Application; Compact Branch-Circuit Units with High Interrupting Rating and Current-Limitation; RoHS Compliant

Specifications:

Type: Class G
Characteristics: 12 Second Time Delay
Voltage Rating: 600/480 Volt AC, 170/300 Volt DC
Current Rating: 15 Amp
Interrupting Rating: 100 Kiloamp (Symmetrical), 10 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.31 Inch
Approval: UL 248-5, CSA C22.2, CE
