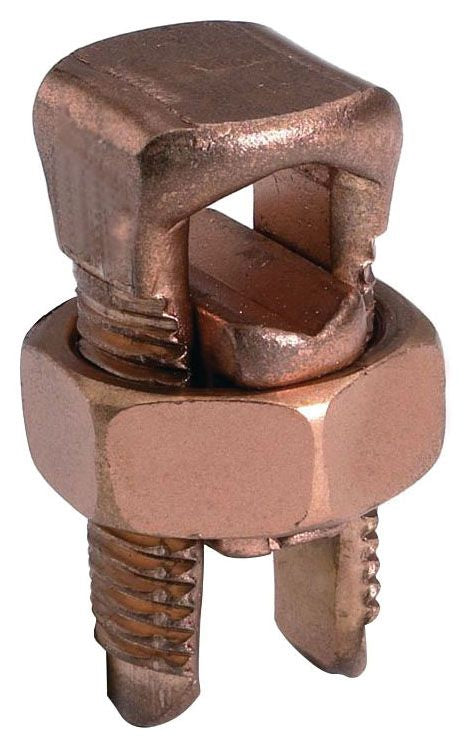

Burndy KS26 Mechanical Split Bolt Connector

In stock - 100 items available
SKU: 99952
Regular price $12.72
OR

Compact, High Strength, High Copper Alloy Servit Split-Bolt has Free-Running Threads and Easy to Grip Wrench Flats; Highly Resistant to Season Cracking and Corrosion, the Servit Connectors Provide Maximum Pressure and Assure a Secure Connection on All Combinations of Run and Tap Conductors

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 2 AWG Stranded (Copper)
Maximum Run Conductor Size: 2/0 AWG Stranded (Copper), 3/0 AWG Solid, (7) 7 AWG Stranded (Copperweld)
Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
Maximum Tap Conductor Size: 2/0 AWG Stranded (Copper), 3/0 AWG Solid, (7) 7 AWG Stranded (Copperweld)
Material: High Copper Alloy
Approval: UL, CSA
