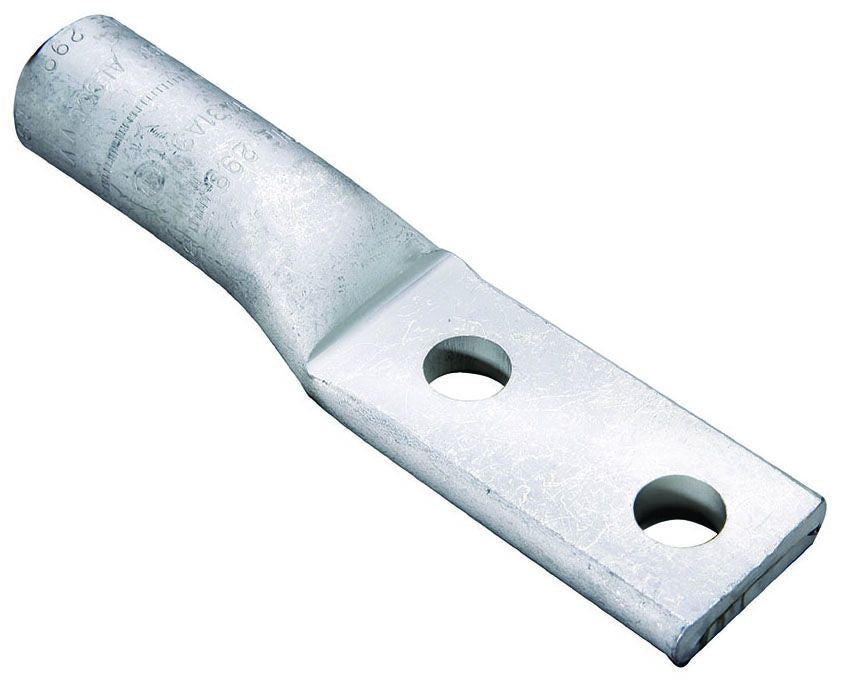

Burndy YA25A5 Compression Cable Lug

Out of stock
SKU: 99956
Regular price $8.67
OR

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1.05 Inch
Pad Size: 0.82 Inch W x 0.21 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.06 Inch
Stud Size: 3/8 Inch
Color: Tan
Die Index: 296
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 3.73 Inch
Approval: UL 468A/468B, CSA
