1/0-1/0-1/0 Aluminum SEU Service Entrance Cable with Ground Cut to Order

In stock - 449 items available
SKU: 18626
Regular price $6.00 / Foot

Aluminum SEU cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet locations. Voltage rating is 600 volts

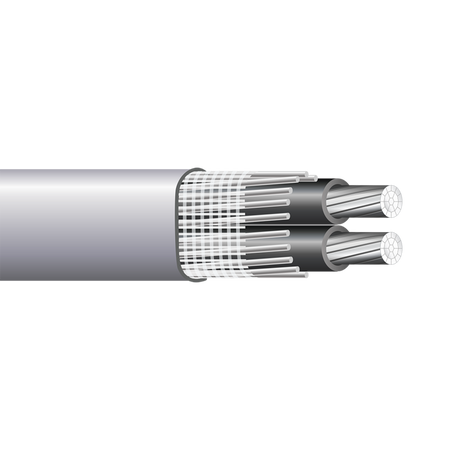

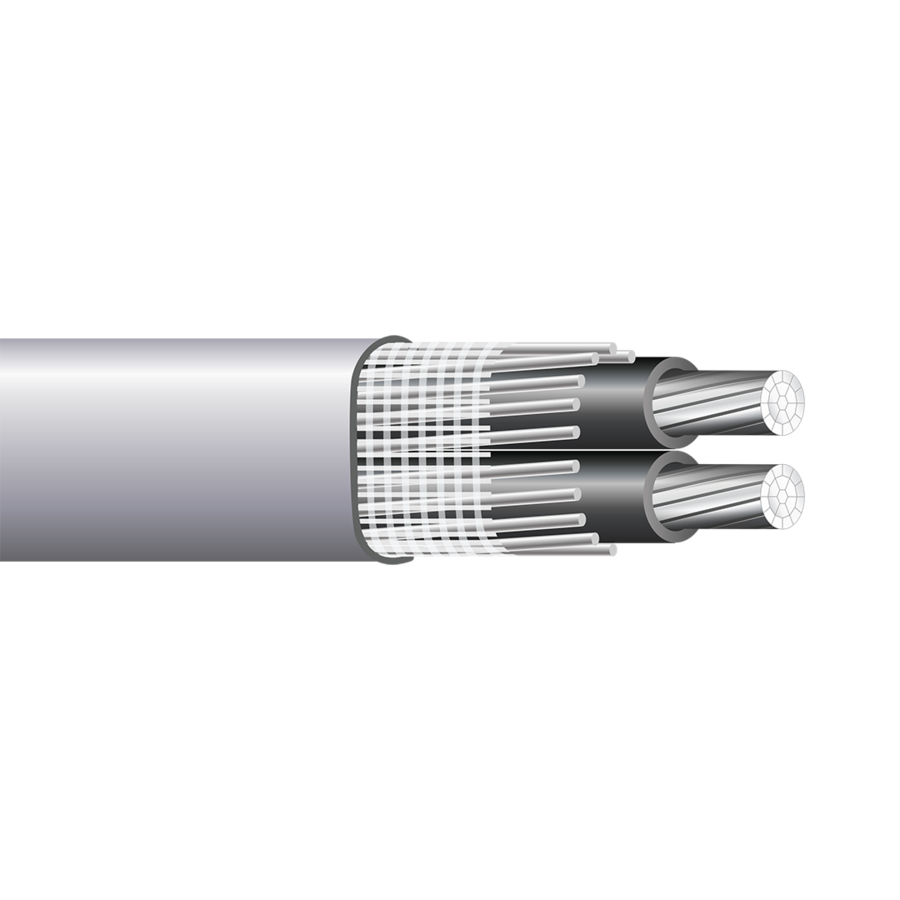

SEU cable is constructed with compacted stranded aluminum alloy. The conductors are covered with a sunlight resistant Type XHHW-2 or Type THHN/THWN-2-insulation. A reinforcement tape is added for extra strength followed by a gray, sunlight-resistant PVC outer jacket. Contains two phase conductors surrounded by a concentric neutral.

- ASTM B800 and either B801 or B836 (SIW)
- UL Standard 44 for XHHW-2
- UL Standard 83 for THHN/THWN-2
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- RoHS/Reach Compliant

Conductor Size: 1/0
Neutral Size: 1/0
Outsided Diameter: 0.661 inches
Ampacity: 135 Amps at 90 Celcius
Weight: 0.438 pounds per foot
