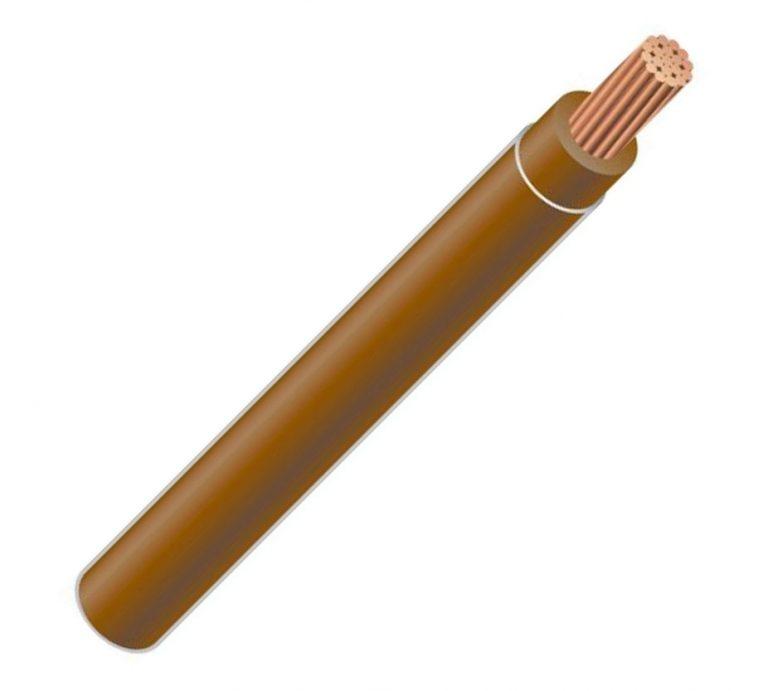

1/0 Stranded Copper THHN Building Wire Cut to Order

  • Sale
  • Regular price $4.72
Shipping calculated at checkout.


Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.

Standards:
- Underwriters Laboratories Standards UL-83, UL-1063, UL-758
- AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
- ASTM Stranding Class B3, B8, B787
- Federal Specification A-A-59544
- Canadian Standards Association C22.2 No. 75
- NEMA WC70/ICEA S-95-658
- Institute of Electrical and Electronics Engineers

Specifications:
- Size: 1/0
- Number of Strands: 19
- Cross Section Area (mm2): 53.5
- PVC Insulation Thickness (Conductor): 1.270 mm / 0.050 inches
- Nylon Jacket Thickness: 0.180 mm / 0.007 inches
- Outside Diameter: 12.04 mm / 0.007 inches
- Weight: 0.398 lbs per ft
Allowable Ampacity: 125 Amps at 60ºC / 150 Amps at 75ºC / 170 Amps at 90ºC
