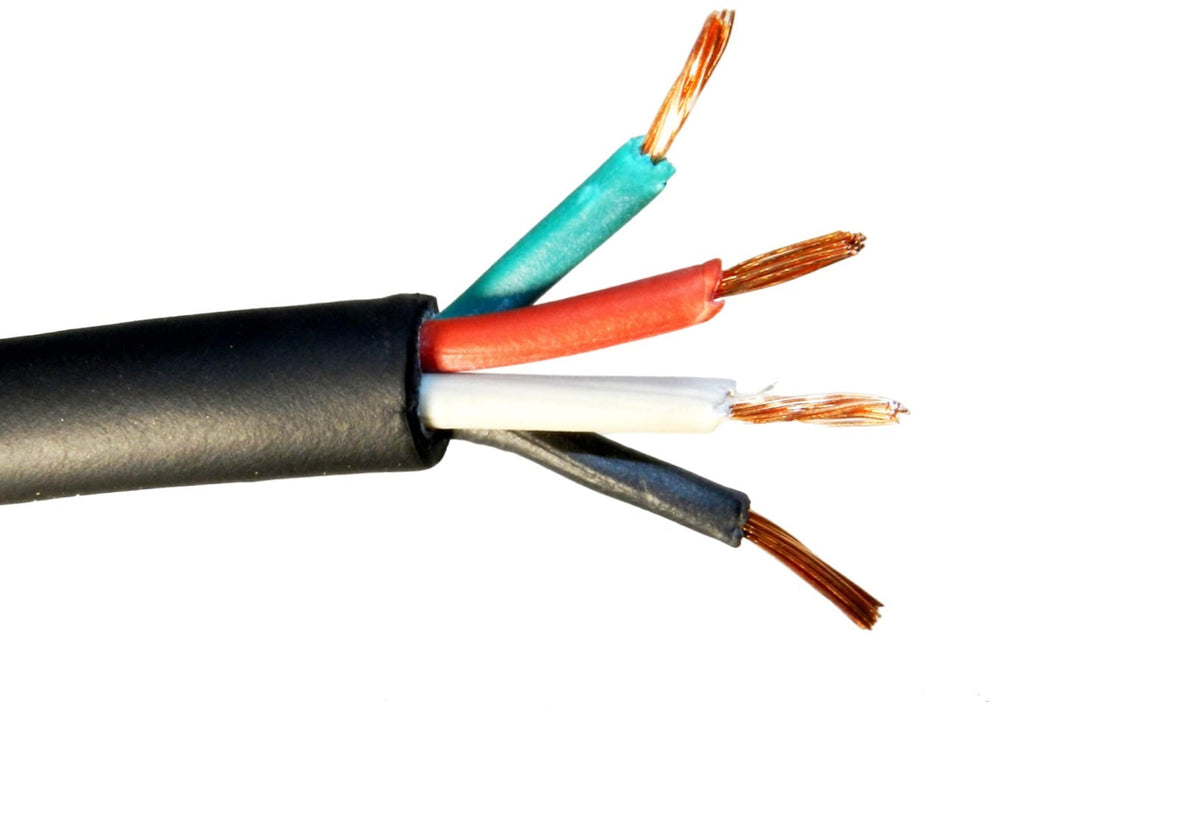

12/4 SOOW Portable Cord for 600V Application, RoHS Compliant

In stock - 7531 items available
SKU: 5382
Regular price $1.91 / Foot
OR

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
- Excellent resistance to oil and moisture
- Good tensile strength, elongation and aging characteristics
- High flexibility, excellent abrasion resistance and sunlight-resistant
- MSHA approved and RoHS Compliant
- Temperature range: -40ºC to +90ºC

Standards:
- MSHA Approved
- RoHS Compliant

Construction:
Conductors: 18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation: Premium-grade, color-coded 90ºC EPDM

Specifications:
Size: 12 AWG
Number of Conductors: 4
Conductor Strand: 65/30
Insulation Thickness: 0.045 inches
Outside Diameter: 0.65 inches
Weight: 0.276 lbs per ft
Current Amps: 20

Color Code:
4 Conductors - Black, White, Red and Green
