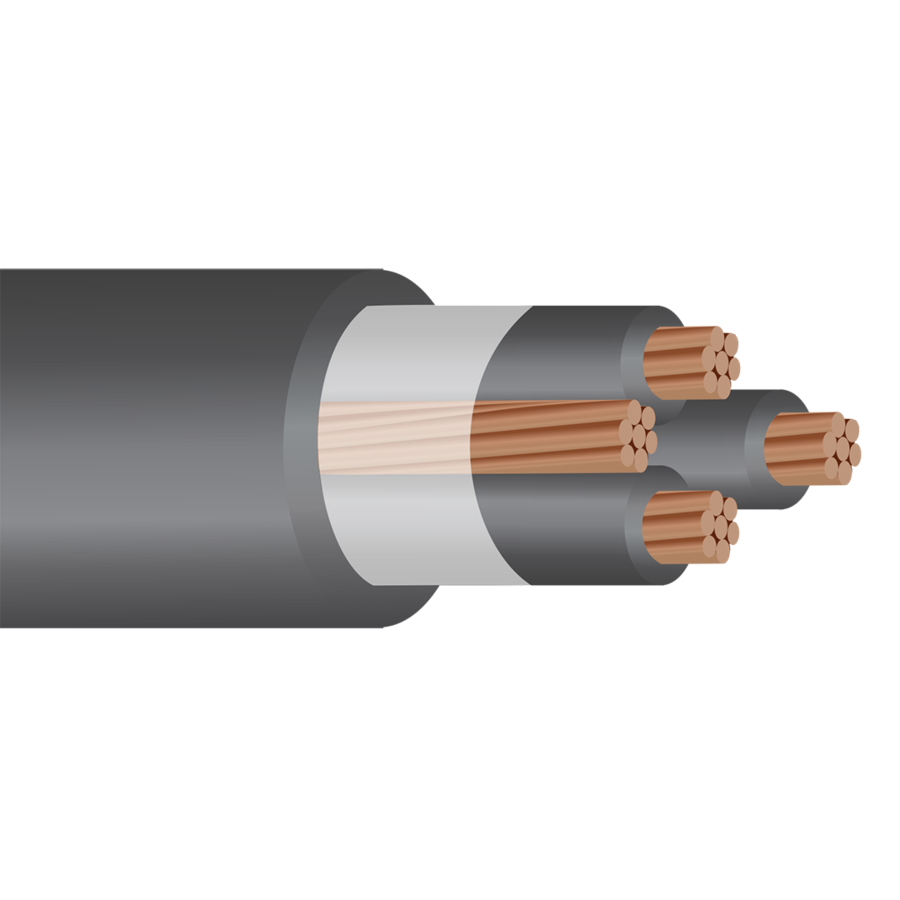

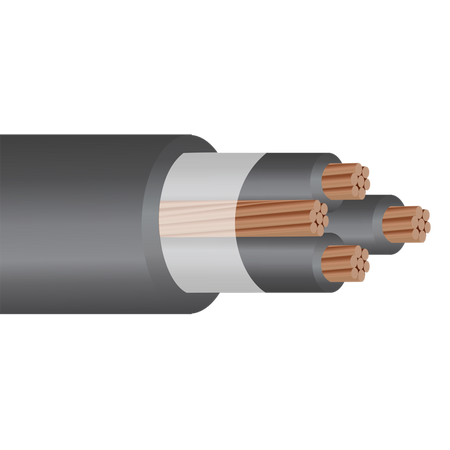

2-2-2 Copper SER Cable with # 4 Ground Wire Cut to Order

In stock - 3724 items available
SKU: 28972
Regular price $8.85 / Foot

Type SE, Style SER Service Entrance may be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® dry locations at temperatures up to 90°C.

Conductor: Stranded conductors: Uncoated copper per ASTM-B3, ASTM-B8, and ASTM-B787
Neutral: White PVC (polyvinyl chloride), rated 90°C Jacketed with white nylon (polyamide)
Jacket: Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly

- UL 83 (insulated conductors)
- UL 854 Service Entrance Cables, File No. 11098
- Federal Specification A-A-59544
- NFPA70: National Electrical Code

Conductor Size: 2 AWG
Ground Size: 4 AWG
Outside Diameter: 0.970 inches
Ampacity: 125 Amps at 90 Celcius
Weight: 0.899 pounds per foot
