Applications:
Branch, feeder or service power distribution in commercial, industrial, institutional and multi-residential buildings. Lighting, power, control and signal circuits. • Fished or embedded in plaster, concealed or exposed installations. Environmental air handling spaces per NEC 300.22 (C). Places of assembly and theaters. Under raised floors for technology equipment conductors and cables. Installation in cable tray and approved raceways. Class I Div.2, Class II Div.2, Class III Div. 1 Hazardous Locations. Voltage rating for all applications is not to exceed 600 Volts.

Standards:
- ASTM B-3, B-8 and B-787
- UL 83, UL 1569, UL 1581 and UL 2556
- NEC 2014 : 300.22 (C), 310.10, 330,392, 518, 520, 530, 645
- NFPA 70
- Federal Specification A-A59544
- IEEE 1202 (70,000 BTU/hr) Vertical Flame Test/FT4
- CT Rated for 600 Volts if installed per the NEC directives
- Rated for 1 and 2 hour Through Penetration
- RoHS Compliant
- ARRA 2009 Buy American Compliant

Specifications:

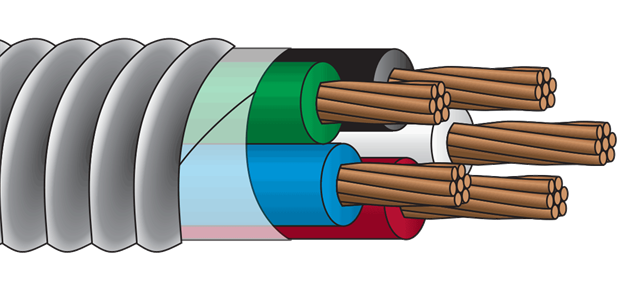

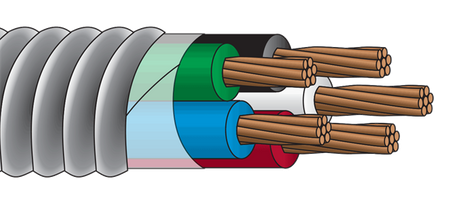

Conductors: 4 + 1 Ground (5 total conductors)
Size: 4 AWG
Ground Size: 8 AWG
Outside Diameter: 1.024 inches
Weight: 0.721 per foot
Ampere Rating: 70 Amps at 60 Celcius, 85 Amps at 75 Celcius and 95 Amps at 90 Celcius
