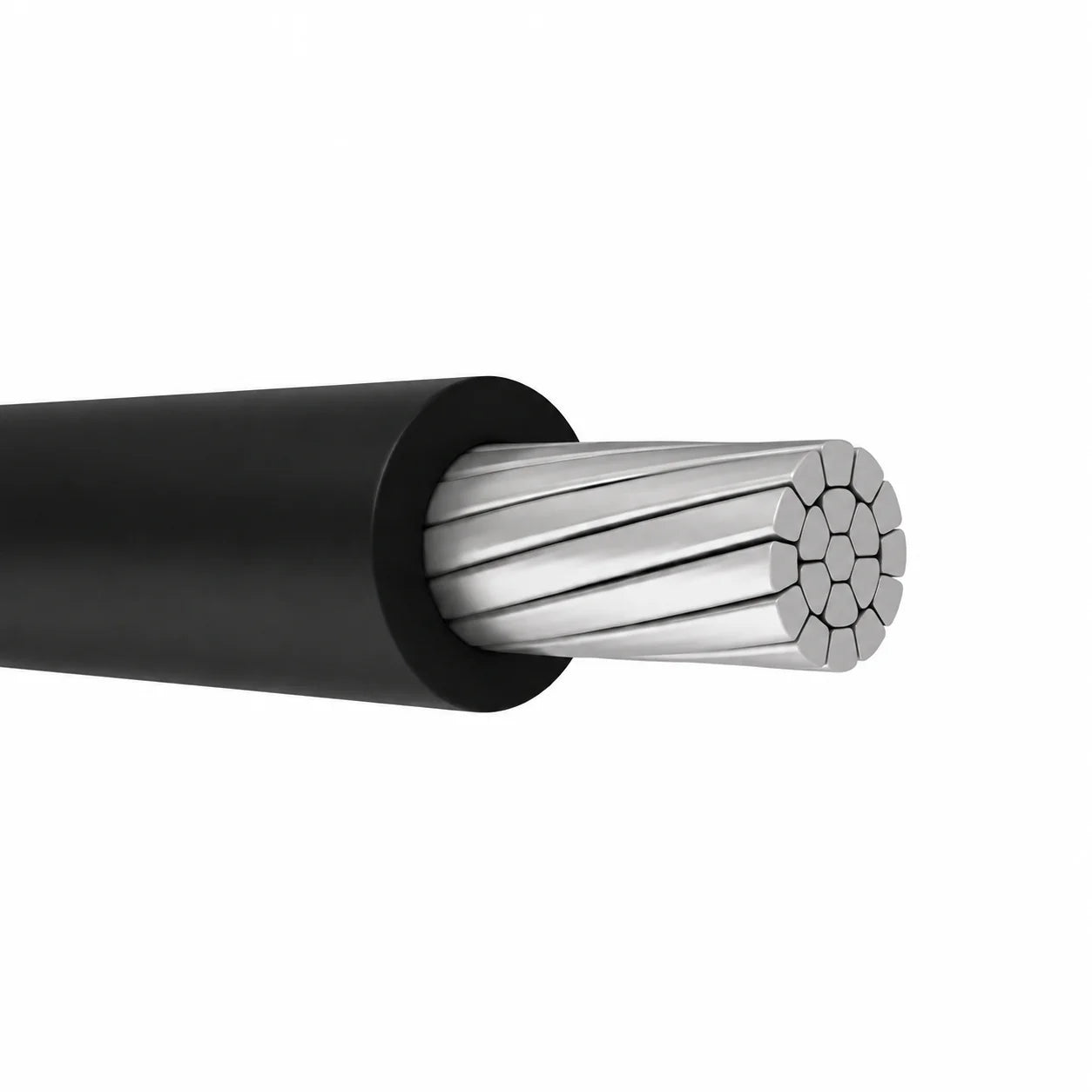

400 MCM XHHW-2 Aluminum Building Wire Cut to Order

In stock - 3024 items available
SKU: 42139
Regular price $2.87

Priced per foot.

Choose your wire lengths

Enter the length of each piece and how many pieces you need.

Total feet 1 ft
Total pieces1
Total footage1 ft
Wire subtotal$2.87

Priced per foot. Subtotal is before discounts, shipping, and tax. Each piece will be cut separately.

Applications
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code. When used as Type THHN or T90 Nylon conductor is suitable for use in dry locations at temperatures not to exceed 90°C. When used as Type THWN-2 or TWN75, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. Voltage for all applications is 600 volts. This cable should be installed without application of pulling lubricant.

Standards:
- UL 44
- ASTM B800 and B801

Specifications:
Size: 400 MCM
Number of Strands: 35
Insulation Thickness: 0.065 inches
Outside Diameter: 0.789 inches
Weight: 0.439 lbs/foot
Ampacity: 305 amps at 90 degress Celcius
