SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90°C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.
Insulation - Color coded cross-linked polyethylene (XLPE).

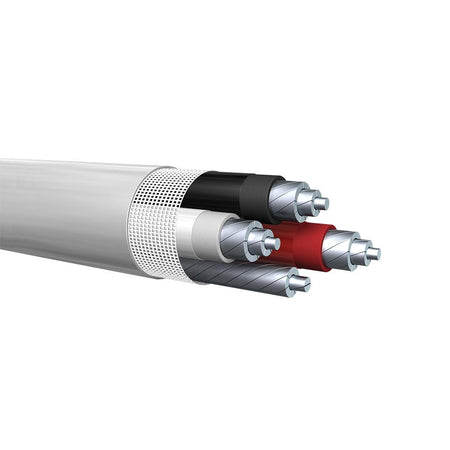

Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration
- UL 854 Service Entrance Cable
Conductor Size: 6 AWG (3 total)
Bare Neutral Size: 6 AWG
Outside Diameter: 0.717 inches
Ampacity: 60 Amps
Net Weight: 0.196 pounds per foot>/p>
