6-6-6 Aluminum SEU Service Entrance Cable with Ground

  • Sale
  • Regular price $1.79
Shipping calculated at checkout.


Applications:
Aluminum SEU cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet locations. Voltage rating is 600 volts

Construction:

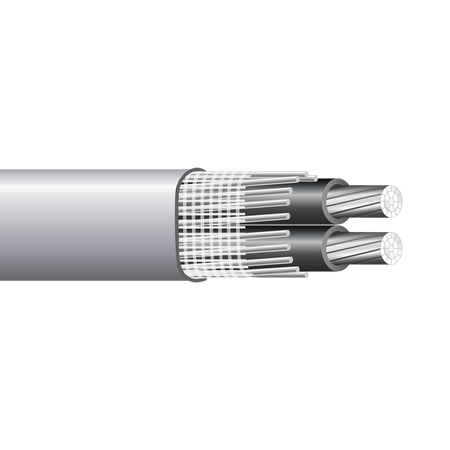

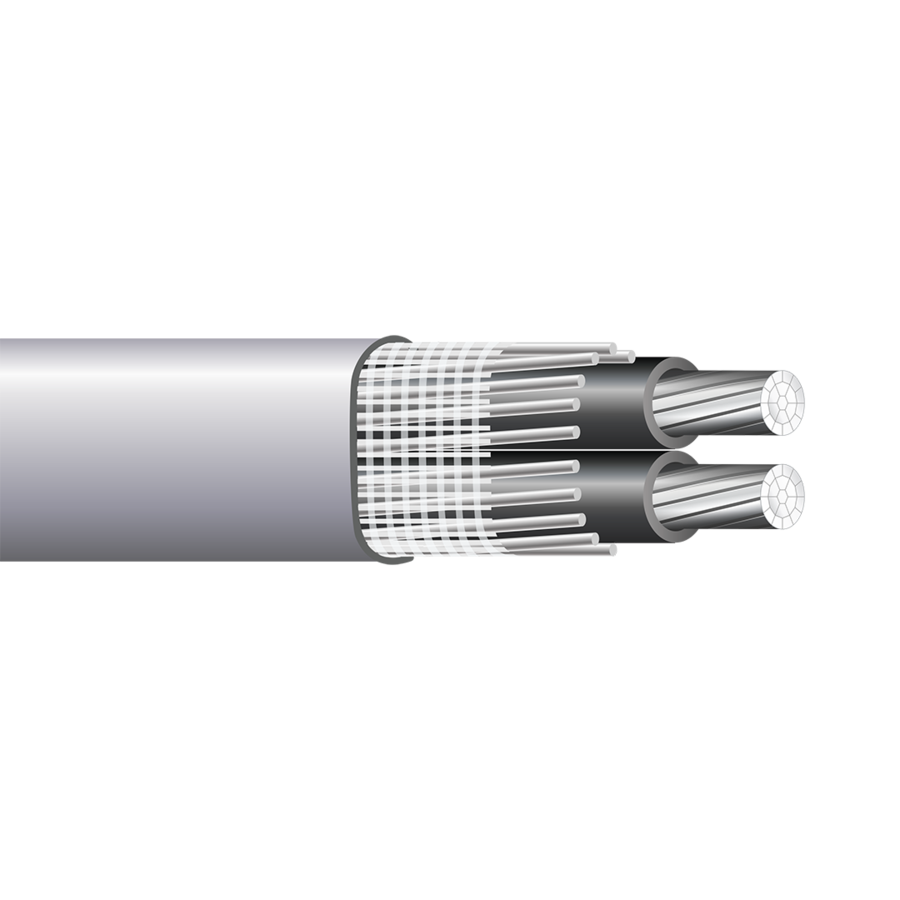

SEU cable is constructed with compacted stranded aluminum alloy. The conductors are covered with a sunlight resistant Type XHHW-2 or Type THHN/THWN-2-insulation. A reinforcement tape is added for extra strength followed by a gray, sunlight-resistant PVC outer jacket. Contains two phase conductors surrounded by a concentric neutral.

Standards:
- ASTM B800 and either B801 or B836 (SIW)
- UL Standard 44 for XHHW-2
- UL Standard 83 for THHN/THWN-2
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- RoHS/Reach Compliant

Specifications:
Conductor Size: 6 AWG
Neutral Size: 6 AWG
Outsided Diameter: 0.458 inches
Ampacity: 60 Amps at 90 Celcius
Weight: 0.143 pounds per foot
