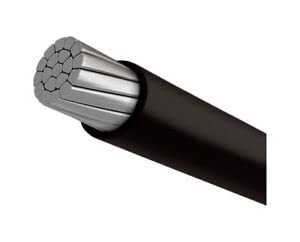

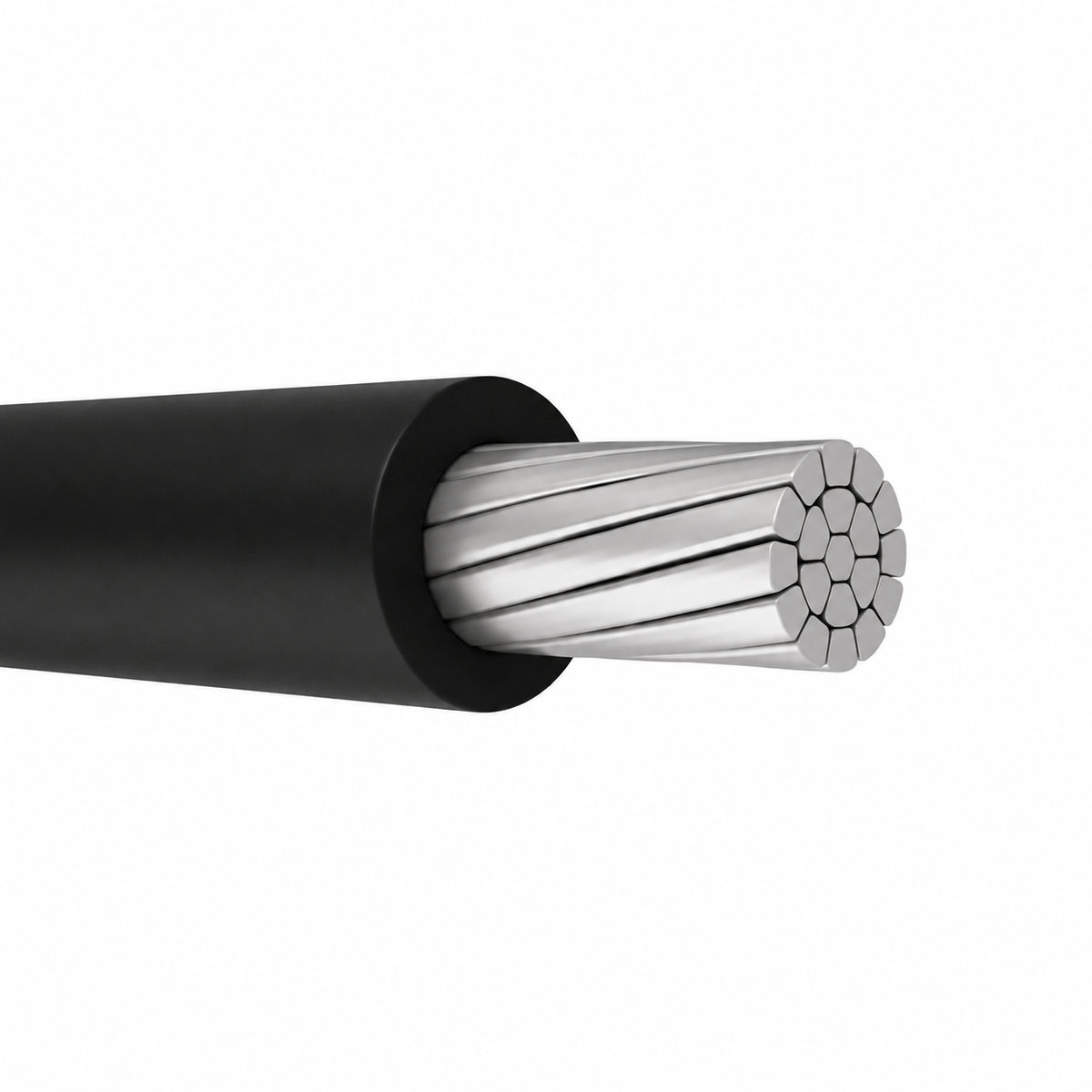

6 AWG XHHW-2 Aluminum Building Wire Cut to Order
Priced per foot.
Couldn't load pickup availability
Applications
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code. XHHW-2 aluminum conductors have cross-linked polyethylene (XLPE) insulation and are suitable for wet or dry locations at temperatures not to exceed 90°C. Voltage for all applications is 600 volts. This cable should be installed without application of pulling lubricant.
Standards:
- UL 44
- ASTM B800 and B801
Specifications:
Size: 6 AWG
Number of Strands: 7
Insulation Thickness: 0.045 inches
Outside Diameter: 0.259 inches
Weight: 0.038 lbs/foot
Ampacity: 55 amps at 90°C, per Southwire's published table. Allowable ampacity depends on installation conditions and termination temperature ratings.
